With over 20 years of expertise in pearl and mother-of-pearl processing, the question we most frequently receive from brands and designers is: “What jewelry components can be crafted from abalone shells?” In truth, there is no definitive answer. We have helped countless clients transform creative sketches into tangible pieces—some designs stunningly feasible, others requiring adjustments due to technical or cost constraints.
Today, we aim to systematically share the realities of abalone shell jewelry design and processing. Drawing on years of experience, we’ll break down the technical challenges, cost structures, and suitable applications for different shapes, helping you strike the optimal balance between design and production.
Basic Geometric Shapes: A Blend of Standardization and Customization
Round Abalone Shell

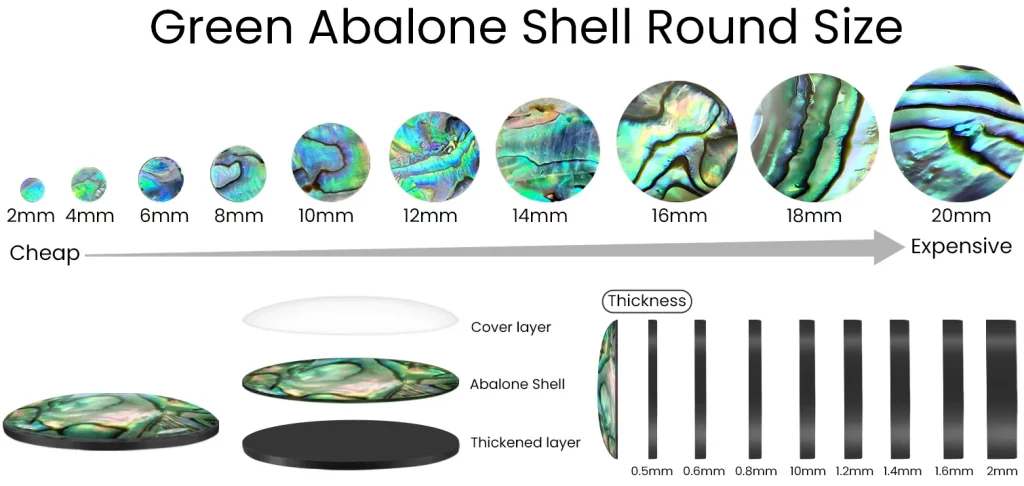

Round are the most fundamental geometric shapes, yet they demand high precision in manufacturing. We offer standard discs ranging from 2–20mm in diameter, with larger sizes requiring custom fabrication. Smaller discs (eg 2–3 mm) present cutting challenges, resulting in lower yield rates. Larger discs, while easier to cut, suffer from low material utilization, driving up costs.
In terms of thickness, 0.5–2mm is commonly used. Too thin and it becomes prone to cracking; too thick and it compromises aesthetics and wearing comfort.
| Cover Layer Type | Enamel Factes | Crystal Facets | Glass Facets |
|---|---|---|---|
|
Cutting Process |
Cabochon |
Cabochon / Faceted |
Cabochon / Faceted |
|
Size Range |
0-2.5mm |
0-6mm, available over 6mm |
0-6mm |
|
Cost |
Very Cheap |
Expensive |
Cheap |

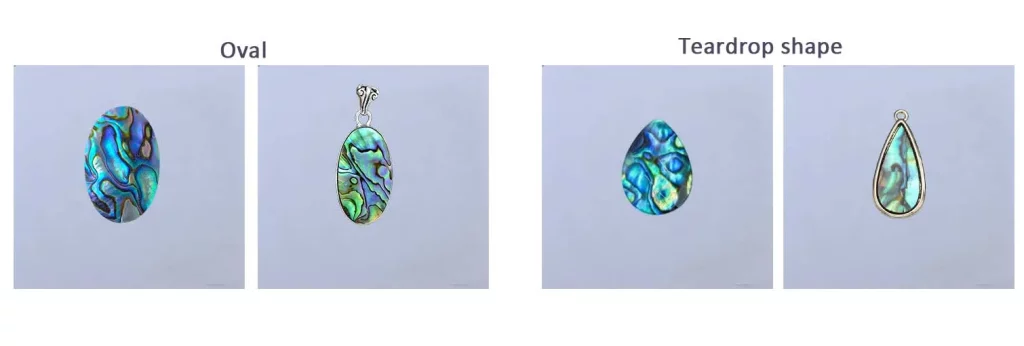

Oval and Teardrop-shaped Abalone Shell
Oval processing is more complex than round. The common length-to-width ratio is 1.5:1, which strikes a good balance between visual aesthetics and material utilization. For special ratios (eg 2.8:1), the cutting angle must be adjusted according to the direction of the abalone shell’s iridescent patterns to prevent uneven luster in the finished product.
As a variant of the oval, teardrop shapes require special attention to prevent tip chipping. This is typically addressed through micro-rounding techniques, which maintain visual lines while enhancing structural integrity.

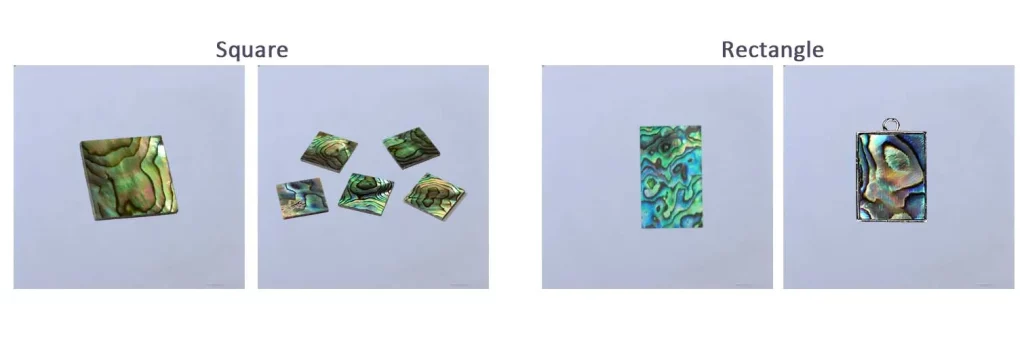

Squares and Rectangles Abalone Shell
Right-angle designs in mother-of-pearl processing tend to cause stress concentration, increasing the risk of cracking. Therefore, during production, the four corners of squares are typically rounded to 0.5–1 millimeters. While pure right-angle designs are feasible, they generally yield lower production rates.
Rectangular products commonly feature aspect ratios between 1.5:1 and 2:1. This proportion aligns with visual aesthetics and enjoys strong market acceptance. Elongated products exceeding this ratio often face inventory challenges unless driven by specific design requirements.

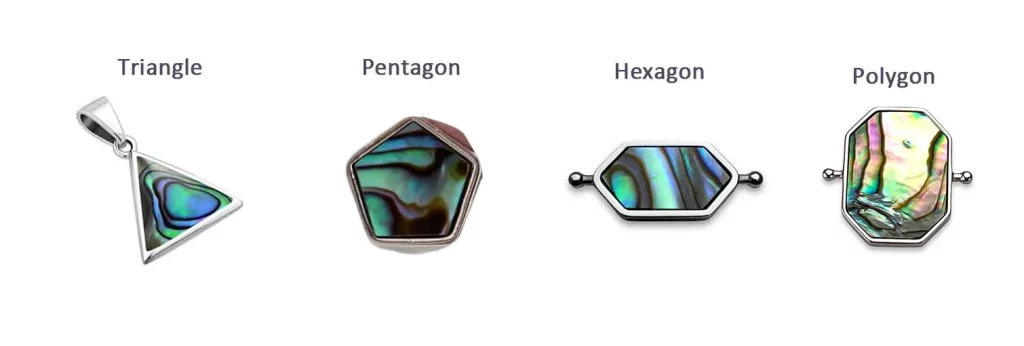

Polygons Abalone Shell
Triangles, pentagons, and hexagons are within the machinable range, but machining difficulty increases with the number of sides. Octagons and polygons with more sides present challenges due to their short side lengths and susceptibility to micro-cracks, demanding extremely high cutting precision. Yield rates are generally low, leading to increased costs.
The Charm and Challenge of Natural Forms
Form-Following Abalone Shell
Form-following design aims to preserve the natural grain and contours of mother-of-pearl, ensuring each piece is unique. However, standardizing production for such items proves challenging. They require manual selection and shaping to maintain natural forms while achieving a consistent overall style, resulting in extended processing cycles and higher costs.

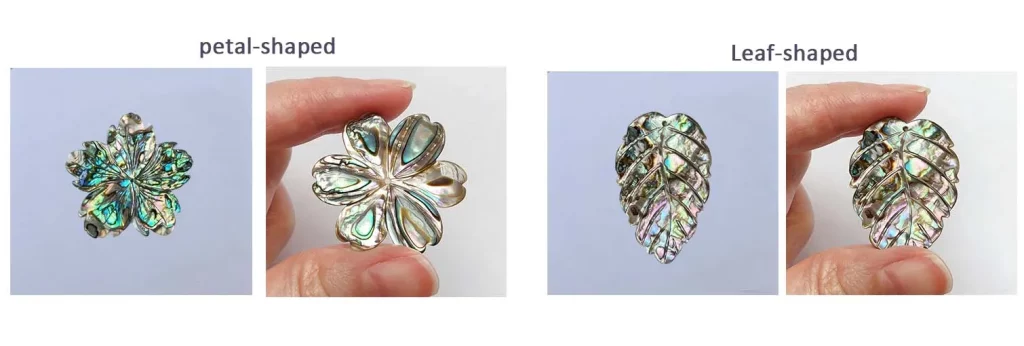

Petal-shaped and Leaf-shaped Abalone Shell
Petal designs require precise control of curve radii to achieve natural forms. Four- or five-petal designs are most common, while additional petals significantly increase manufacturing complexity.
When depicting leaf vein textures on leaf-shaped components, laser engraving is commonly employed. However, this process demands strict parameter control, as improper operation can easily cause material burn damage or cracking.
Common shapes of abalone shells and their corresponding jewelry categories

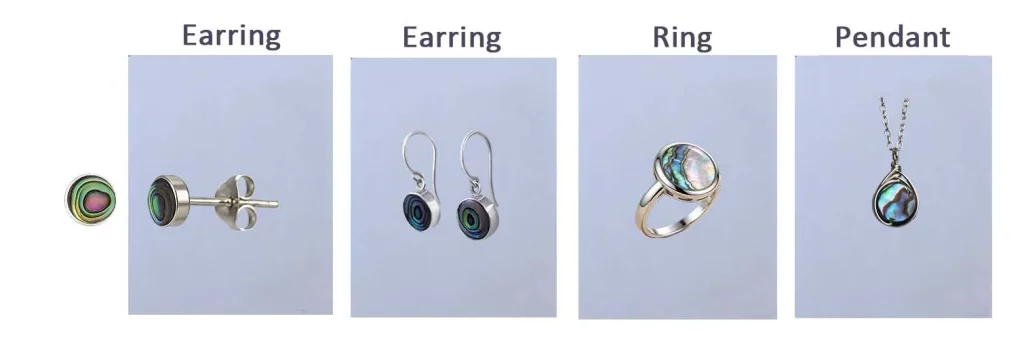

Round Abalone Shells for Jewelry
- Round abalone shells are commonly used for earrings, rings, and bracelet pendants.

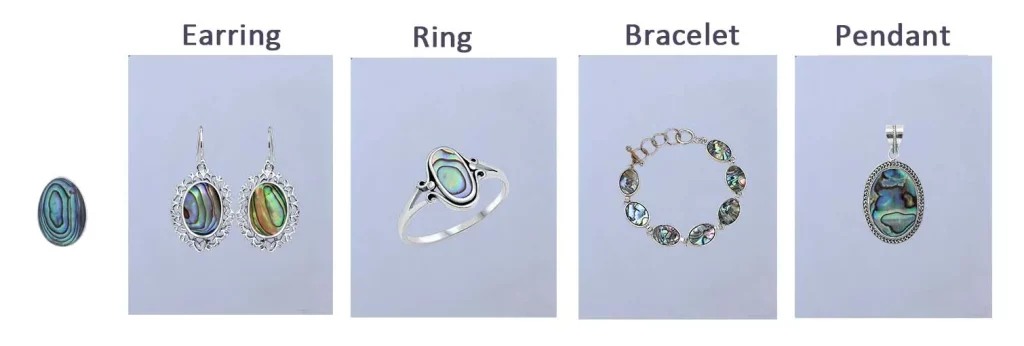

Oval and Teardrop-shaped Abalone Shells for Jewelry
- Oval abalone shells are commonly used for rings, pendants, earrings, and bracelet charms.
- Smooth lines create a visually enlarged effect, making them the mainstream choice for ring settings and pendants, particularly suited for highlighting iridescent patterns.

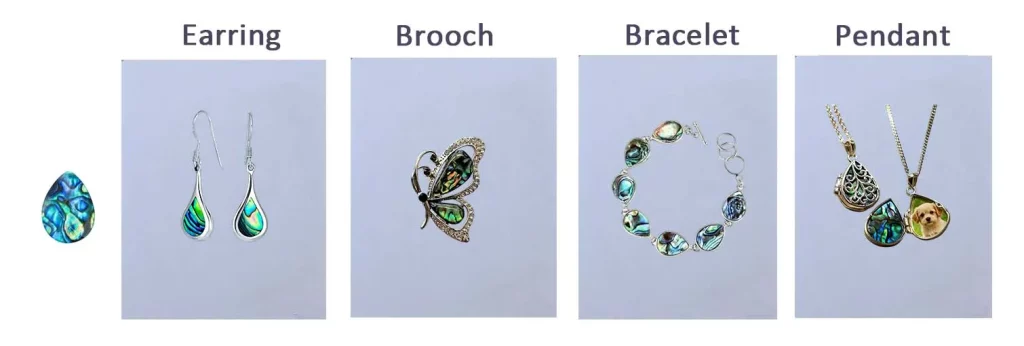

- Teardrop-shaped abalone shells are primarily used for pendants, earrings (especially drop-style), bracelets and brooches.

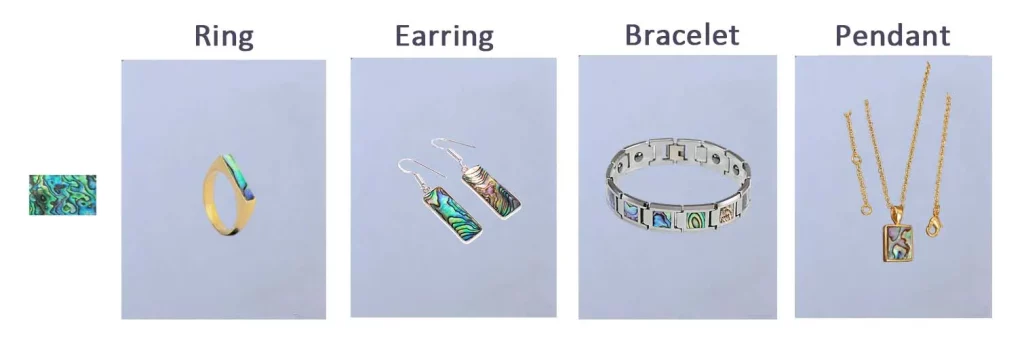

Square and Rectangular Abalone Shells for Jewelry
- Square/rectangular abalone shells are commonly used for rings, bracelet links, men’s jewelry, and geometric-style pendants.

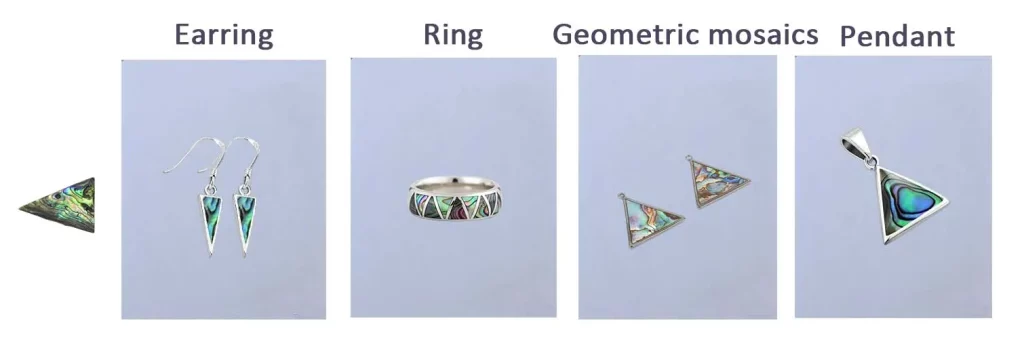

Triangular Abalone Shells for Jewelry
- Triangular abalone shells are commonly used for stud earrings, geometric mosaics, and modern-style pendants.
- For personalized designs or combination arrangements, commonly seen in fashion-forward earrings and abstract-shaped jewelry.

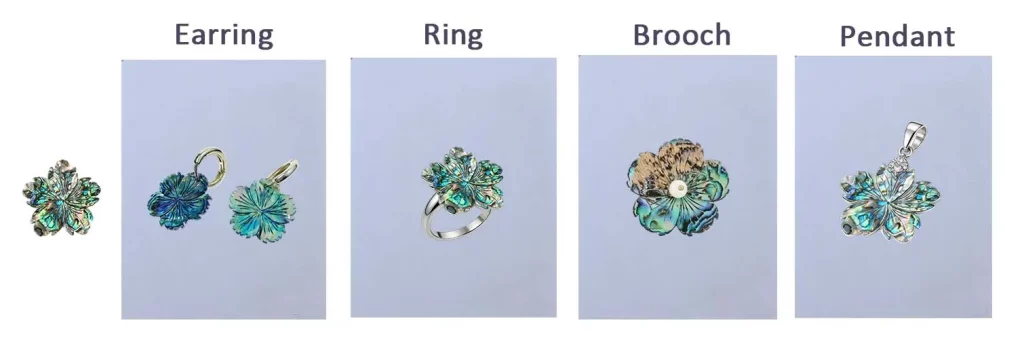

Petaled Abalone Shells for Jewelry
- Petaled abalone shells are primarily used for earrings, pendants, brooches, and feminine-style rings.
- The 4–5 petal variety is most common, offering a soft and romantic aesthetic ideal for spring/summer collections, wedding jewelry, and similar themes.

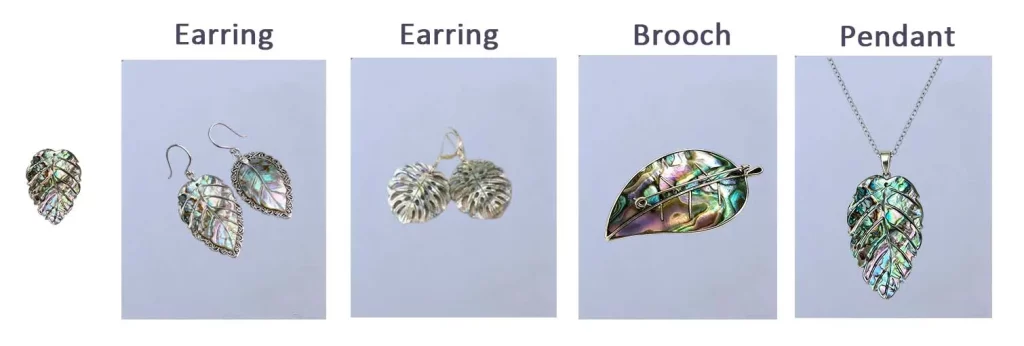

Leaf-shaped Abalone Shells for Jewelry
- Leaf-shaped brooches are commonly used in pendants, earrings, brooches, and nature-themed collections.
- Often employed in naturalistic designs, they are well-suited for series of eco-themed jewelry.
FAQs Regarding Abalone Shell Jewelry.
Can you reliably set abalone shells in metal for jewelry designs with complex surfaces and ultra-thin bezels? What's the yield rate?
Core Advantages:
- Durability and Low Maintenance: Stainless steel (especially 316L) offers corrosion resistance, hypoallergenic properties, and resistance to discoloration. It remains unaffected by prolonged sweat exposure, significantly reducing after-sales service rates.
- High Structural Strength:Stainless steel (especially 316L) offers corrosion resistance, hypoallergenic properties, and resistance to discoloration. It remains unaffected by prolonged sweat exposure, significantly reducing after-sales service rates.
- Cost Advantage: Material costs are lower than 925 sterling silver and comparable to high-quality eco-friendly alloys. Its durability provides brands with a compelling value proposition and quality selling point.
Relative Disadvantages:
- Processing Difficulty and Cost: Stainless steel’s high hardness causes greater wear on processing equipment and cutting tools. Setting costs may be approximately 15-25% higher than for alloys.
Weight Perception: Its higher density makes it heavier than alloys for the same volume. Design considerations are needed for lightweight earrings and necklaces.
How can damage to abalone shells be prevented during setting due to stainless steel's high hardness?
Implement a cushioning setting process:
- Precision pre-machining of settings: All inner contact surfaces of stainless steel settings undergo high-precision mirror polishing to ensure no burrs or sharp edges.
- Elastic bonding layer: Utilize specially formulated high-elasticity modified epoxy resin adhesive. Upon curing, it forms a flexible cushioning layer that absorbs stress between the stainless steel and mother-of-pearl.
- Zero-pressure snap-fit: For bezel designs, precisely calculate the bezel dimensions to ensure the abalone shell is “inserted” rather than “pressed in.” Rely solely on adhesive bonding to eliminate mechanical stress.
Which stainless steel surface finish pairs best with abalone shell for a premium look?
- Top Choice: PVD vacuum-plated gold/rose gold (matte finish). The matte texture accentuates the iridescence of abalone shell, creating a sophisticated contrast.
- Classic: High-gloss mirror polish. Complements the sheen of abalone shell, ideal for fashion-forward designs.
- Unique: PVD black plating (gunmetal). Creates a striking visual impact with vibrant abalone shells (e.g., peacock blue), exuding modernity and individuality.
Are ear needles/ear plugs hypoallergenic? Are the needles too thick?
- Material: All skin-contact parts are crafted from 316 or 316L stainless steel.
- Specifications: Standard needle diameter is 0.8mm—the optimal size for strength and comfort. We also offer 0.7mm (more comfortable) or 0.9mm (more secure) options. Ear plugs feature embedded silicone cushions for enhanced comfort.
How to manage weight in drop earrings?
- Lightweight structural design: Incorporate stainless steel components featuring “hollowed-out weight reduction” or “thin-walled hollow construction.”
- Material substitution: Non-load-bearing elements (e.g., decorative chains) can be crafted from lightweight alloys or silver components.
How are the edges of metal inserts processed? How do we ensure they won't scratch hands?
All metal inserts undergo a “three-step edge treatment process”:
1) Initial deburring after CNC machining.
2) Magnetic polishing to achieve naturally rounded edges and corners.
3) Manual fingertip inspection to guarantee no scratchy feel. We can provide “edge treatment comparison samples” to visually demonstrate the difference in craftsmanship.
We have a complex irregular design drawing. Can abalone shells achieve this shape? Does the metal inlay require a separate mold? What are the costs and lead times?
Abalone shells can achieve complex irregular cuts and carvings, but three key points require evaluation:
- Cutting Feasibility: We will analyze details such as edge sharp angles and inner arc radii based on your drawings. If extremely thin sections (<0.5mm) or deep sharp angles exist, minor design adjustments may be needed to prevent cutting fractures.
- Inlay Molding Matching: Irregular shapes typically require custom inlay molds to ensure perfect fit with the mother-of-pearl. Mold costs range from ¥800-3000 based on complexity, with a development cycle of 5-7 business days.
- Optimization Recommendations: We offer complimentary design optimization services to adjust local structures while preserving your design aesthetic, thereby improving yield rates and reducing costs.
Will selecting different metal plating colors (such as platinum, gold, rose gold, gunmetal black) affect the natural iridescence of the abalone shell? What color combinations do you recommend?
The plating color directly impacts the final visual effect of the abalone shell.The reason: The color of the metal base creates a “backlighting effect” through the shell’s translucent layer.
- Light-colored plating (e.g., platinum, bright silver): Maximizes the restoration and enhancement of the abalone shell’s natural iridescence, creating a fresh, translucent appearance. This is the safest and most versatile choice.
- Warm-toned plating (e.g., gold, rose gold): Adds a warm hue overlay to the shell’s iridescence. For example, pairing a peacock blue mother-of-pearl with a rose gold base may yield a unique purple-gold hue. This requires pre-production plating testing, as the outcome can be stunning or fall short of expectations.
- Dark plating (e.g., gunmetal black, antique bronze): Creates a dramatic high-contrast effect, emphasizing the pearl’s bright areas while sacrificing shadow details. Suitable for designs seeking individuality and a modern aesthetic.
How can we ensure that inlays do not discolor, detach, or lose their luster after prolonged wear?
To enhance your brand’s customer service and fundamentally reduce post-sale disputes caused by improper care, we recommend and support:
- Including a “Care Trio” as standard packaging: Consider including in each product box: a soft polishing cloth, a mini soft-bristle brush, and an elegant care card printed with the core maintenance points (can feature your brand logo).
- Establish clear post-sale responsibility boundaries: In your sales terms, kindly note: “Proper care is essential for maintaining your jewelry’s lasting beauty. Damage resulting from improper use (such as ultrasonic cleaning, impact, or exposure to chemicals) may not be covered under free warranty.”
Abalone shells are natural materials and may exhibit uneven textures or minor spots. How do you define “defects” in your quality inspection?
Confirm with you before shipment to avoid disputes over bulk orders.We categorize defects into three types and clearly define the handling procedures:
| Defect Grade | Defect Categories | Specific Description | Our Handling Standards |
|---|---|---|---|
|
A |
Critical Defects |
Penetrating cracks, chipped corners, holes severely compromising structural integrity. |
100% inspection required for rejection |
|
B |
Major Defects |
Visible surface blemishes: distinct black spots, white spots (area >0.1mm²), or dense grain breaks severely affecting aesthetics. |
Rejected during 100% inspection. Limited acceptance permitted with written client approval as unique characteristics. |
|
C |
Minor Defects/Natural Characteristics |
Minor clouding in grain patterns, uneven color transitions, natural specks <0.3mm² permitted. |
Permitted unless client specifically requests “Flawless Grade”
(significantly increasing costs and waste). |
Final Thoughts
As a jewelry customization factory rooted in China, we specialize in providing professional abalone shell jewelry supply chain solutions for brands, designers, and retailers. From design sketches to finished products, we possess comprehensive customization capabilities and a flexible production system. We rigorously control every step—from raw material selection to precision setting—ensuring quality and timelines meet commercial collaboration standards.
Should you require abalone shell product development, prototyping, or bulk customization, please feel free to contact us at any time. We look forward to becoming your trusted partner through reliable craftsmanship and efficient collaboration.
